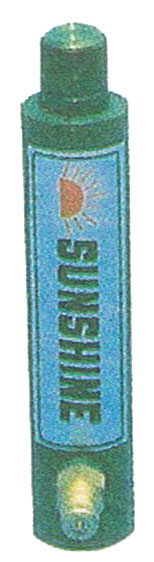

กระบอกไฮโดรลิค C-6-10

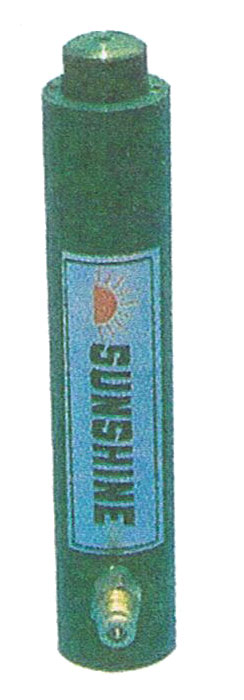

กระบอกไฮโดรลิค C-12-15
กระบอกไฮโดรลิค C-30-15

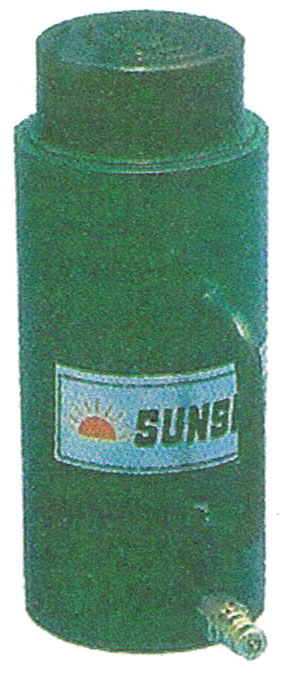

กระบอกไฮโดรลิค C-50-10

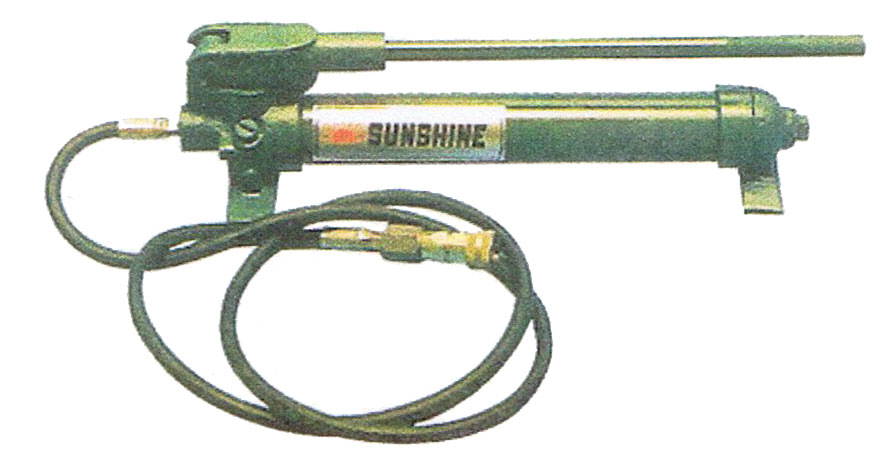

ปั๊มไฮโดรลิค P-20
ปั๊มไฮโดรลิค P-30-2

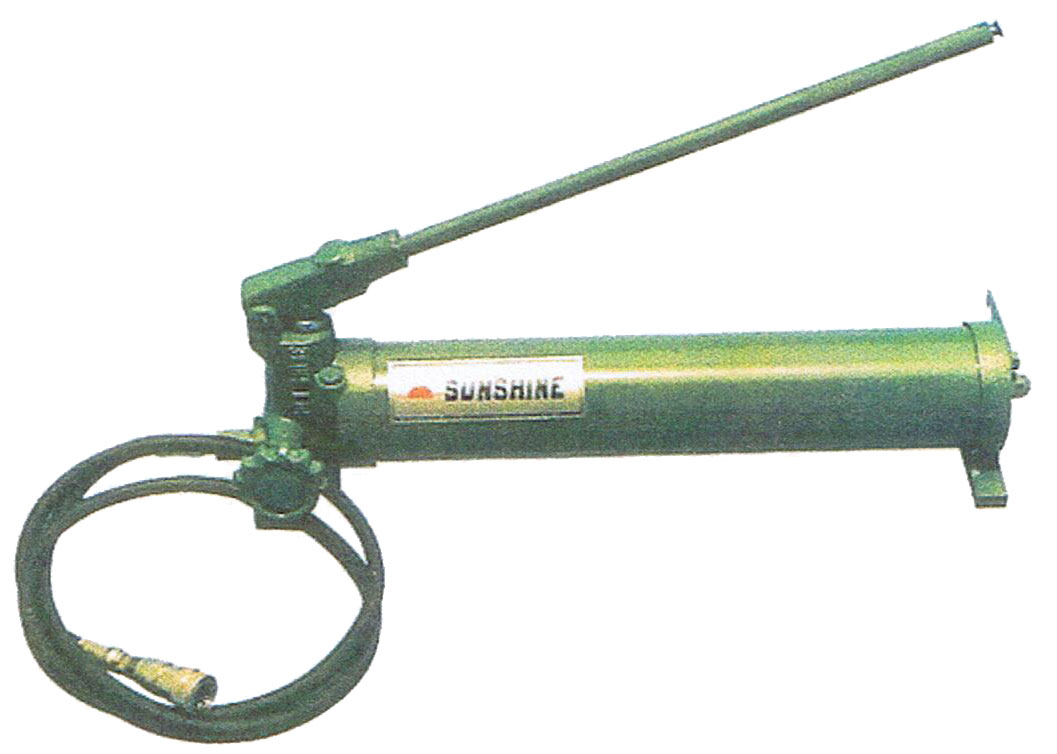

ปั๊มไฮโดรลิค P-100-2
| Model | Cylinder Capacity |
Stroke | Min. Height |
Inside Diameter |
Rod Diameter |
Outside Diameter |
| (Ton) | (mm.) | (mm.) | (mm.) | (mm.) | (mm.) | |
| C-6-10 | 6 | 100 | 255 | 40 | 31 | 50 |
| C-12-15 | 12 | 150 | 310 | 50 | 40 | 65 |
| C-30-15 | 30 | 150 | 320 | 75 | 56 | 95 |
C-50-10 |
50 | 150 | 310 | 100 | 80 | 125 |
| Model | Speed | Oil Vol. Per Stroke | Pressure | Piston Dia. | Oil Vol. |
| (Cm.3) | (Kg/Cm.2) | (mm.) | (cm.3) | ||
| P-20 | One | 1.5 | 700 | 32/12 | 700 |
| Model | Speed | Hi. Oil Vol. Per Stroke |
Low Oil Vol. Per Stroke |
Low Pressure | Hi. Pressre | Piston Dia. | OilVol. (Liter) |
| (Cm.3) | (Cm.3) | (Kg/Cm.2) | (Kg/Cm.2) | (mm.) | |||
| P-30-2 | Two | 24 | 7.6 | 70 | 310 | 32/18 | 4 |
| P-100-2 | Two | 7.5 | 1.5 | 60 | 700 | 32/12 | 3.5 |
